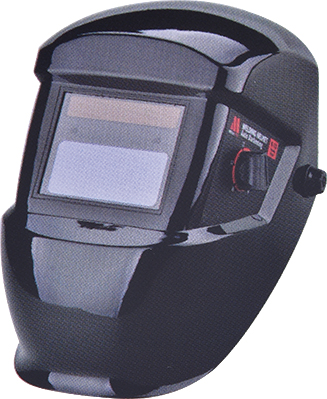

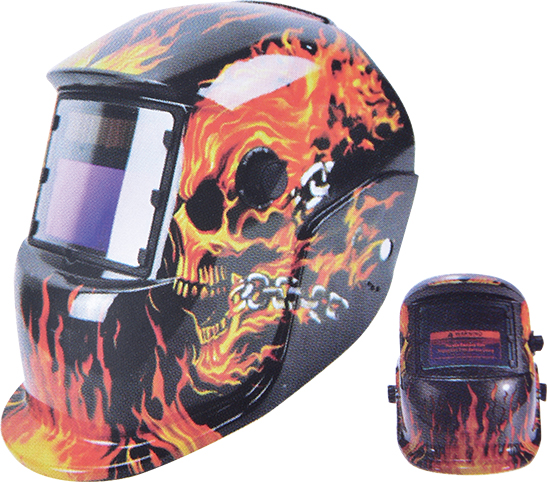

Darkening welding  mask

Model No.: AE- LY500A

Optical Class: 1/1/1/2

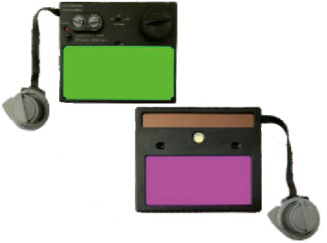

Filter size (mm): 110 X 90 X 9

Viewing window (mm): 92.5 X 42.5

Power ON/OFF : Fully Automatic

Power supply :Li-battery & Solar cells

Rated Capacity of Li-battery: 600mAh

Replaceable battery: No

Switching time from light to dark:3/10,000sec

Delay time : 0.1-0.8sec

Light shade number : DIN4

Dark shade option : DIN9-13

Shade Control: External, Variable Shade

Sensitivity Control: Stepless control

UV/IR Protection: DIN16

Operating temperature :-5℃ ~ +55 ℃

Storing temperature: -20℃ ~ +65 ℃

Low Amperage TIG Rated: ≥5amps

Arc Sensor: 2

Helmet Material: PA/PP
